46" vertical LCD player Floor Standing LCD Advertisement Display
Features:
·Ultra-high-fidelity sound, pleasant stereo sound
·Ultra-thin and ultra-light transmission tempered glass or acrylic protective layer .
·Fully enclosed aluminum frame ,cold-rolled steel design shell.
·Industrial grade paint technology, smooth ,uniform, waterproof ,rust-proof and wear-resisting !
·Long time stable operation,adopt wide viewing angel technology ,high brightness industrial LCD panel .
· Verity and complete software, stable and reliable
·Remote controller adopt password control,access control and softdog U dish.
·Support picture split ,video split ,rolling marquee,timing ON/OFF ,25days playlist setting ,ect.
·Apply the newest 4G digital multimedia professor technologies, have excellent visual effect
·42",46",55" Avaliable,Android Operating system ,Network touch screen optional
| Specification |
| Model No. | US-AV46FLA |
| Panel size | 46″ |
| Display area(mm)/mode | 1044(W)×568(H) 16:9 |
| Maximum resolution | 1920*1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.543(H)×0.543(V) |
| Brightness (nits) | 700cd/2 |
| Contrast | 1800:1 |
| Visual angle | 178°/178° |
| Response time | 5ms |
| Life(hrs) | >60,000(hrs) |
| Input and output |
| USB | 1 |
| SD | 1 |
| CF | 1 |
| Speaker | 2×5W(9Ω) |
| Video |
| Color system | PAL/NTSC/SECAM |
| Remote controller | IR Remote Controller |
| OSD display( screen menu display) |
| Menu language | Chinese/English |
| Power |
| Power supply | AC100~240V 50 /60 HZ |
| Maximum power consumption | 280W |
| Standby power consumption | <5W |
| Temperature |
| Working temperature | 0°C~50°C |
| Storage temperature | -20°C~60°C |
| Working humidity | 85% |
| Storage humidity | 85% |
| Appearance |
| Color/appearance | White,black,customized |
| Case | Metal case SPCC |
| Installation | Floor-standing |
| Quality Standard | ISO9001,CCC |
Support:
| Video format:MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Audio format:Wave/MP3/WMA/AAC |
| Image format:JPEG/BMP/TIFF/PNG/GIF |
| Image resolution:480P/720P/1080P |
Product details show :
Flank:

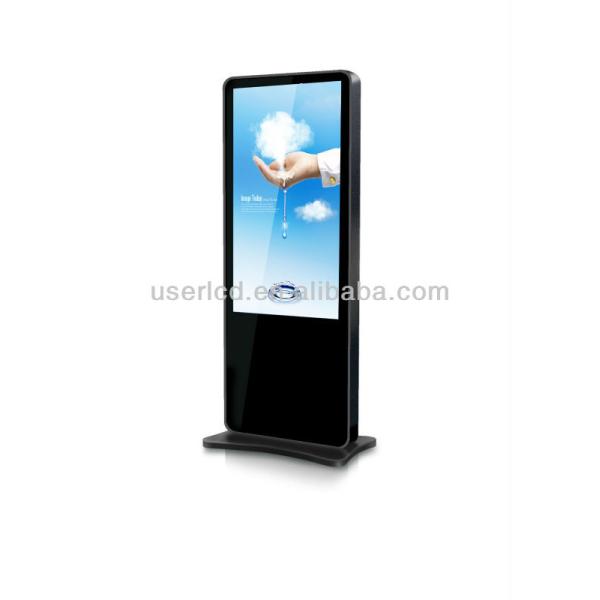

Front:

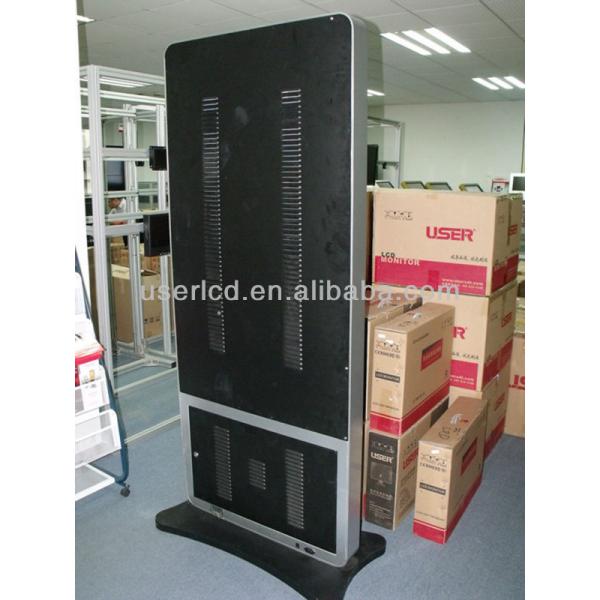

Back:
Detail function:
Play mode:
Suport video ,flash animation,images and text mix broadcasting.
Video truly seamless playback.
Up to 14 kinds of picture transition mode.
Support rich display resolution:1366x768,1440x900,1600x900,1680x1050,1920x1080.
Single card, document classification and more card between automatic cycle play
Schedule:
The default program broadcasting.
Broadcast specified programs on specified date and time.
Automatically deleted overdue program.
Program insertion,broadcast emergency major events.
Program encryption:
Make encryption and authentication for playlists and program material,refuse illegal program broadcast.
Pre-set independent password by grouping.
Certificate U disk, only authenticated program can be imported.
Multi-language menu:
Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )
Split-screen display:
Support switch between both horizontal & vertical display mode
Support switch between full screen and split diplay mode
Both horizontal & vertical display mode support full screen and split display mode
Can realize scroll marquee play,smooth scrolling,without pause
Timing management:
Support turn on,turn off,timer switch,manually 4 o perating mode
Select the timer switch
Support 2 independent timers everyday
Support set up 7 days a week independent ,also support set up according to the daily management
File import:
Support CF card ,SD card ,U disk & other storing media store file ,improt playlist and program material file into these storing media.
Configuer terminal parameters and update the software by CF card ,SD card and U disk
Log management:
Terminal works log
Switch time record
Remont control record
File import and software update record
Terminal log Abnoemal record
Broadcast record log
Fully record program broadcast date,time and broadcast times
Export log files by the terminal ID and date to the U disk
Support retain logs up to 1 month,automatically delaeted the log files beyond this time
Application:
Widely use for advertising promotion and in shopping malls of information issue , hospitals,schools, suermarkets,banks,securities,hotels,commercial buildings,airports,stations,communication,public utilities, ect.
Package:
Trade terms:
1.Price: Above price coveres cost of controller &software,based on EXW SHENZHEN
2.Lead time:within 5-15working days after payment.
3.Payment terms:T/T,Western union,L/C.
We provide servise:
1. Customized requirment special display of 5-82 inches according to customer need is available, OEM&ODM are welcome.
2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
3. Warranty: one year overall unit ( Non-artificial damage )

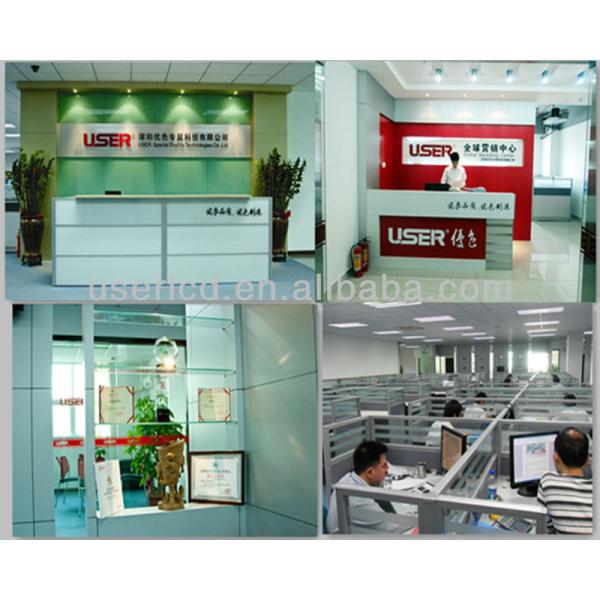

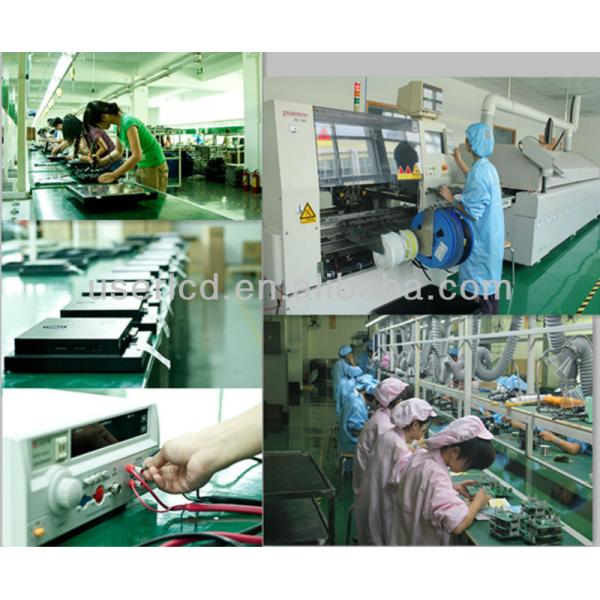

Office and factory:

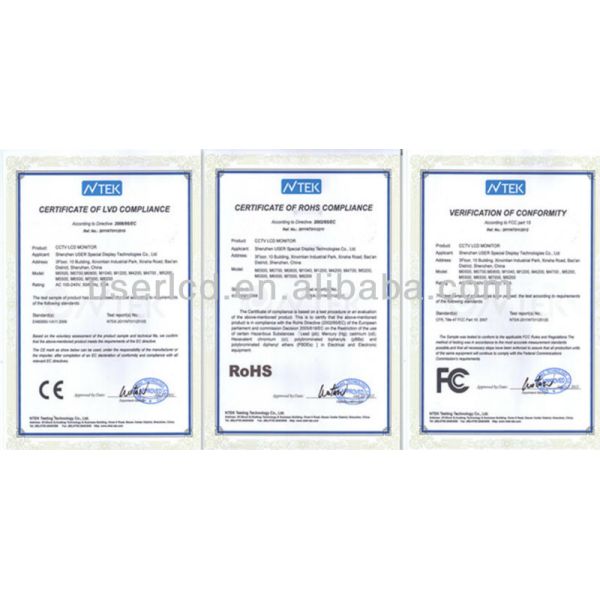

Certificate:
Company breif introduction and products range:
ShenZhen User Special Display Technologies CO.,Ltd. As one of the leading providers of special display solution manufactor specialized in development ,production and marketing of LCD monitor 5″-82 ″Various Size. We also provide CCTV LCD monitor,Industrial LCD monitor,Broadcast LCD monitor,medical LCD monitor,Touch screen LCD monitor,Multimedia kiosk, high definition LCD display ,LCD Advertising player,Digital signage,LCD player,Billboards,LCD video wall, LCD splicing,LCD display wall,video wall processor and so on. Any inquires are warmly welcome!
